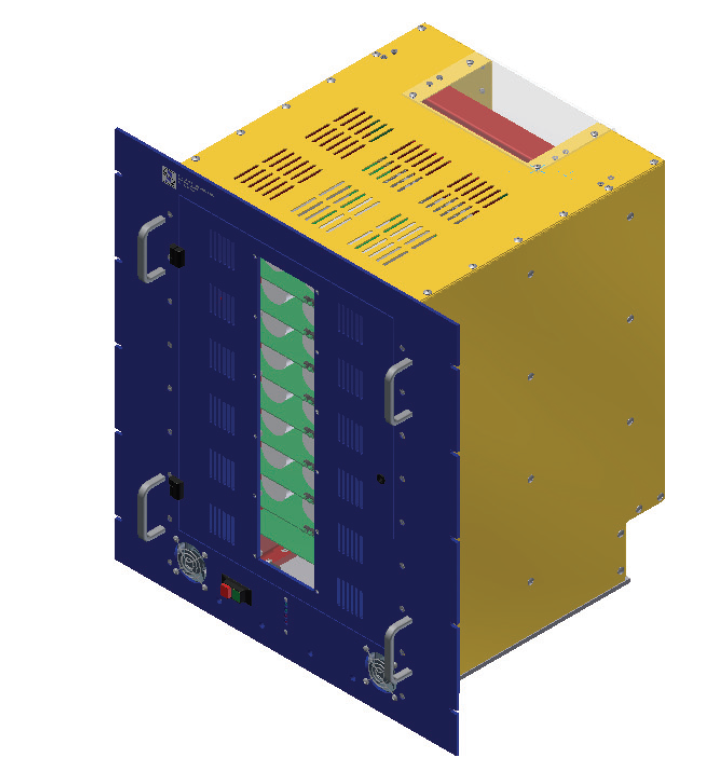

FREYA is a marx-type modulator similar to VOR with higher peak and average power. More stored energy allows for long and higher power pulses with sharper rise and fall times.
Unit of Measure

Specifications

Voltage

 N/A 3 to 30 kV

Current

 N/A 0 to 30 A

Radio Frequency (RF) Power (Peak)

 N/A 0.4 MW

Peak Modulator Power

 N/A 1 MW

Average Modulator Power

 N/A 10 kW
Repetition Rate1 N/A Up to 4000 Hz

Pulse Width

 N/A 1 to 10 µs

Flat-Top

 N/A < 0.2 %/µsec

Control

 N/A External

Input Direct Current (DC) Voltage

 N/A 2 to 4 kV

Frequency

 N/A 50 Hz60 Hz

Cooling

 N/A Air

Compliance

 N/A Restriction of Hazardous Substances (RoHS)

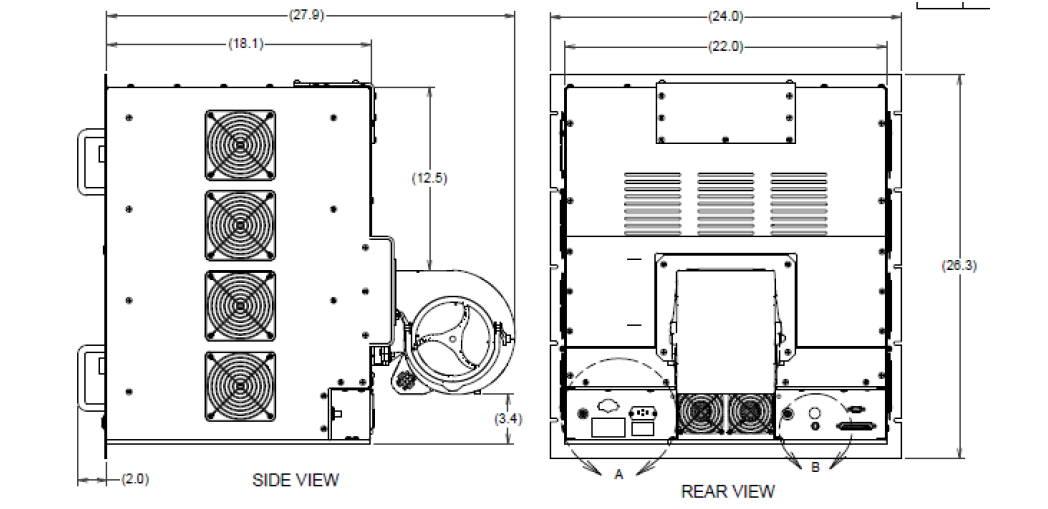

Mounting

Mounting Rack Width

 N/A 24 in

Mounting Rack Height

 N/A 26.3 in

Mounting Rack Depth

 N/A 20 in
  • 1 Duty limited
