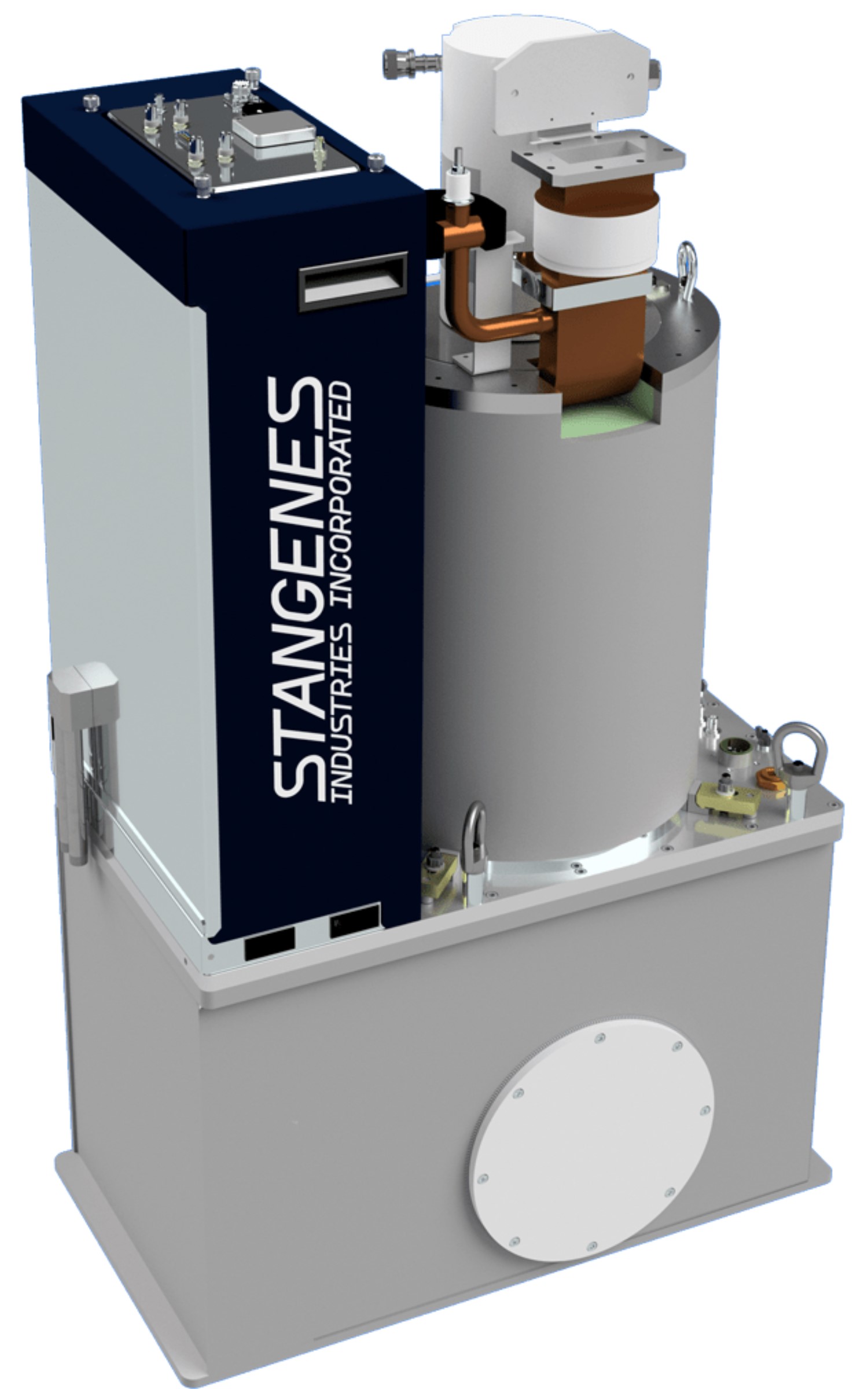

Valhalla is a klystron modulator utilizing solid-state IGBT switches based off a patented parallel Marx generator topology with built in droop compensation. The small footprint allows the system to be designed into rotating gantries and several novel features exist that greatly reduce the MTTR compared to competitive systems.
Unit of Measure

Specifications

Voltage

N/A 40 to 130 kV

Current

N/A 30 to 100 A

Radio Frequency (RF) Power (Peak)

N/A 5.1 MW

Peak Modulator Power

N/A 13 MW

Average Modulator Power

N/A 24 kW
Repetition Rate1 N/A Up to 400 Hz

Pulse Width

N/A 1 to 10 µs

Flat-Top

N/A < 0.2 %/µsec

Control

N/A MODBUS over Ethernet

Frequency

N/A 50 Hz60 Hz

Cooling

N/A Water

Mounting

N/A Klystron Socketed in Oil Filled Pulse Transformer Tank

Compliance

N/A Restriction of Hazardous Substances (RoHS)

Input

Alternating Current (AC) Voltage

N/A 400 V480 V

Phase

N/A 3

Note for Input

N/A Separate 7U Rack

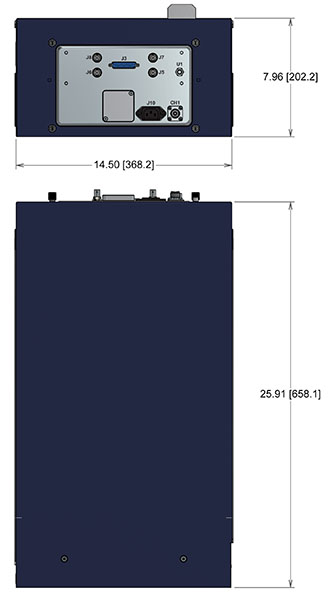

Dimensions

Length

N/A 25.91 in658.1 mm

Width

N/A 14.50 in368.2 mm

Height

N/A 7.96 in202.2 mm
  • 1 1000 Hz on request (duty limited)
