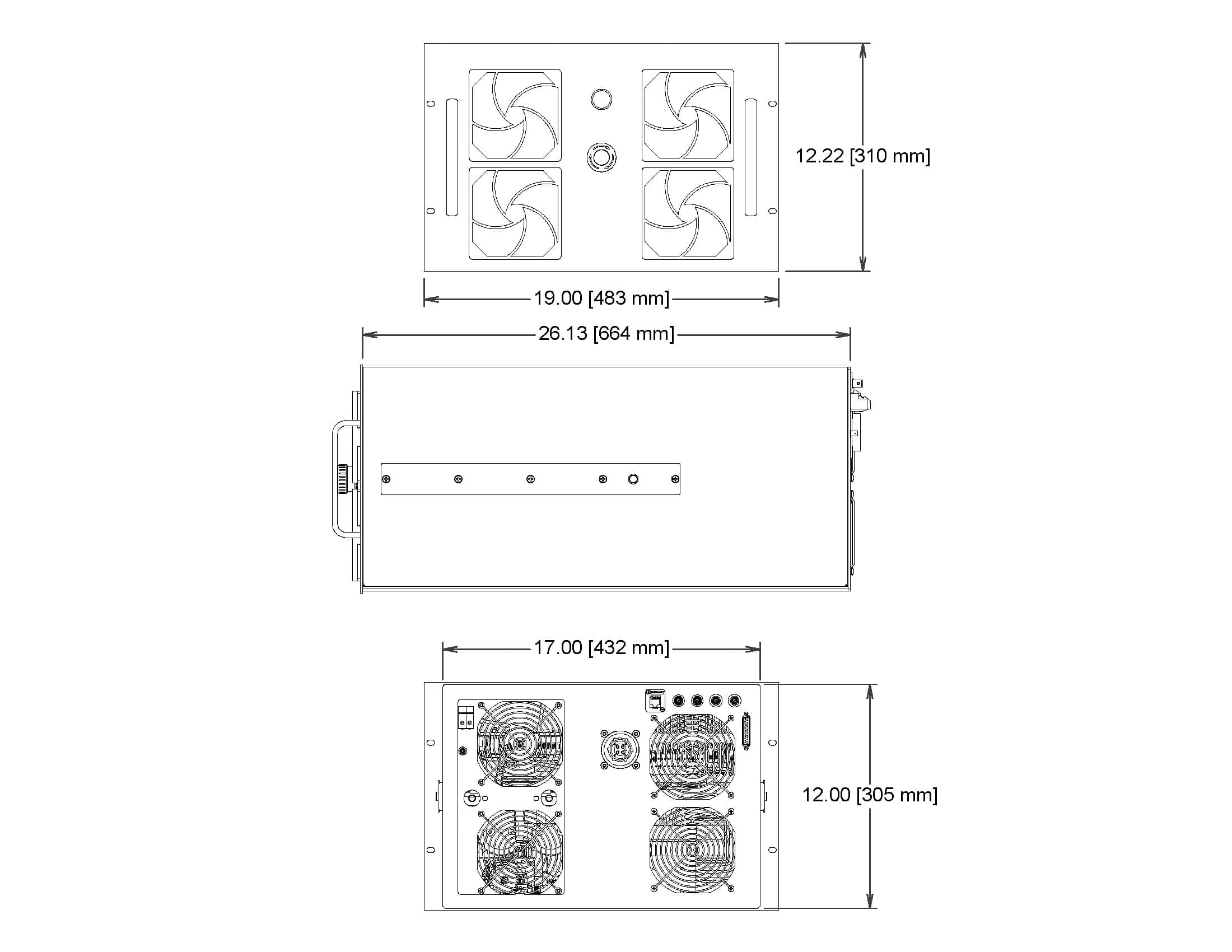

TYR and ATLA are magnetron modulators utilizing solid-state IGBT switches based off a patented parallel Marx generator topology with built in droop compensation. The single box systems contain no oil and are water cooled. ALTA is a lower average power modulator compressed into a smaller volume.
Unit of Measure

Specifications

Voltage

 N/A 30 to 52 kV

Current

 N/A 30 to 120 A

Radio Frequency (RF) Power (Peak)

 N/A 3.1 MW

Peak Modulator Power

 N/A 6.2 MW

Average Modulator Power

 N/A 12 kW
Repetition Rate1 N/A Up to 400 Hz

Pulse Width

 N/A 1 to 10 µs

Flat-Top

 N/A < 0.2 %/µsec

Control

 N/A MODBUS over Ethernet Depending on System

Frequency

 N/A 50 Hz60 Hz

Cooling

 N/A Water

Mounting

 N/A Pulse Cable and Small Box Mounted Near Magnetron

Compliance

 N/A Restriction of Hazardous Substances (RoHS)

Input

Alternating Current (AC) Voltage

 N/A 230 V

Phase

 N/A 1
  • 1 1000 Hz on request (duty limited)
