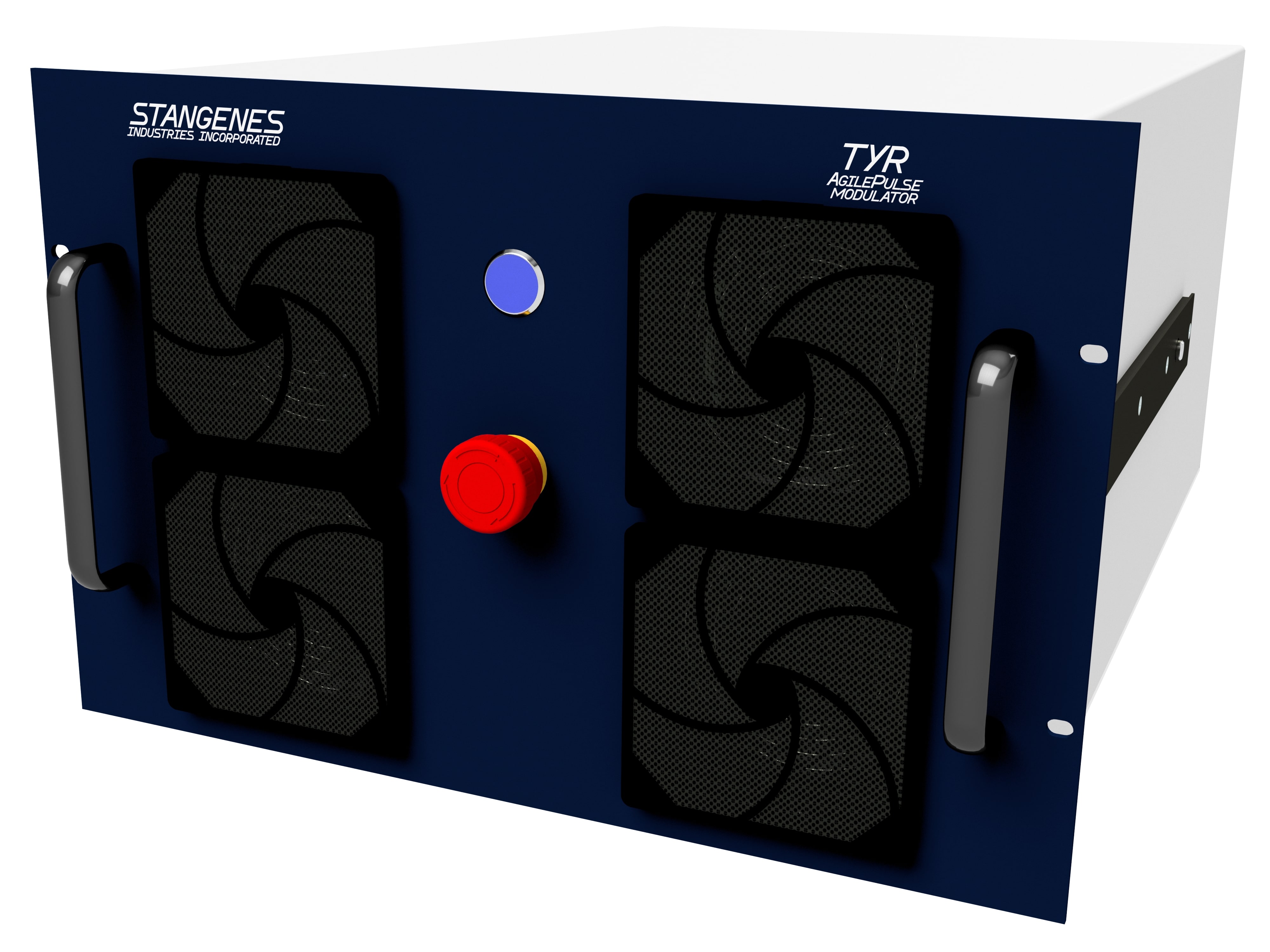

• TYR 12 Kilowatt (kW) Average Power Magnetron Modulator
TYR and ATLA are magnetron modulators utilizing solid-state IGBT switches based off a patented parallel Marx generator topology with built in droop compensation. The single box systems contain no oil and are water cooled. ALTA is a lower average power modulator compressed into a smaller volume.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Voltage

Current

Radio Frequency (RF) Power (Peak)

Peak Modulator Power

N/A TYR 12 Kilowatt (kW) Average Power Magnetron Modulator N/A 30 to 52 kV N/A 30 to 120 A N/A 3.1 MW N/A 6.2 MW
N/A ATLA 2.2 Kilowatt (kW) Average Power Magnetron Modulator N/A 30 to 52 kV N/A 30 to 120 A N/A 3.1 MW N/A 6.2 MW
