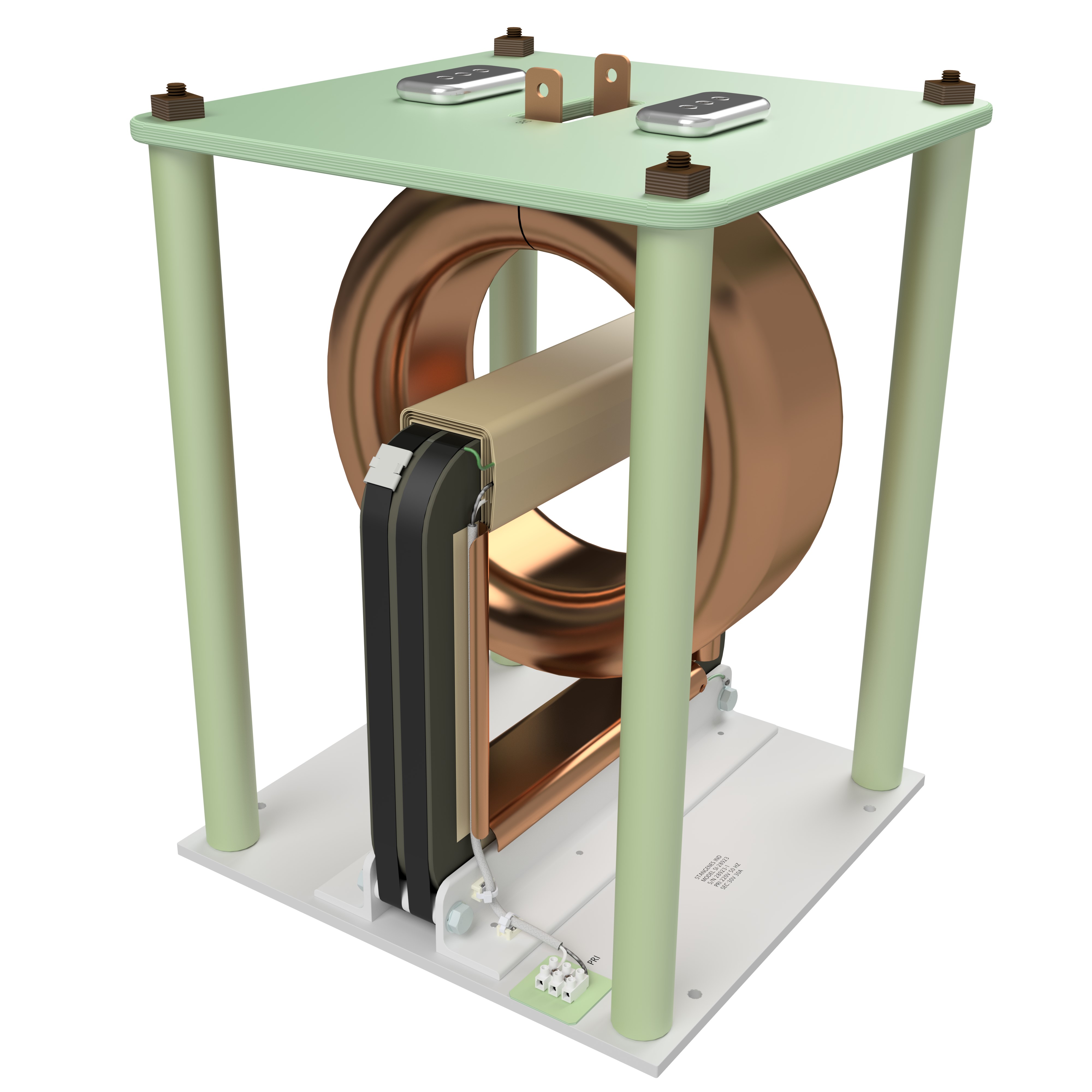

Stangenes Isolation Transformers have been constructed in so many shapes and sizes that it is impossible to show them all at once. The following descriptions represent broad categories, which can be reconfigured almost infinitely. Other standard and custom models available.
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1

Item #

Primary
Voltage

Secondary
Voltage

KVA
Rating

Isolation
Voltage

Medium

1240 A N/A 240 V N/A 12 V, 660 A 120 V, 40 A N/A 12.7 N/A 80 kVDC N/A AIR
6477 N/A 120 V240 V N/A 120 V/240 V N/A 0.5 N/A 150 kVDC N/A EPOXY
2971 N/A 120 V N/A 120 V, 8.3 A N/A 1 N/A 150 kVDC N/A SF6
1483 N/A 480 V N/A 110 kV, 400 mA N/A 44 N/A 150 kVDC N/A SF6
5809 N/A 208 V N/A 120 V, 83.3 A N/A 10 N/A 200 kVDC N/A SF6
1148 N/A 480 V N/A 21 V, 170 A N/A 3.5 N/A 250 kVDC N/A SF6
7469 N/A 480 V N/A 22 V, 370 A N/A 8.2 N/A 270 kVDC N/A SF6
5155 N/A 117 V N/A 117 V, 8.5 A N/A 1 N/A 300 kVDC N/A OIL
7232 N/A 480 V N/A 100 V, 150 A N/A 15 N/A 300 kVDC N/A OIL
4952 N/A 480 V N/A 175 V, 10 A 22 V, 300 A N/A 8.3 N/A 350 kVDC N/A SF6
5424 N/A 120 V N/A 120 V, 25 A N/A 3 N/A 500 kV N/A SF6
4149 N/A 480 V N/A 60 V, 650 A N/A 39 N/A 600 Kv PULSE N/A OIL
3666 N/A 20 V N/A 20 V, 50 A N/A 1 N/A 800 Kv PULSE N/A OIL
